Model
Dimension
W*D*H
Box dimension
W*D*H
Shielding effectiveness（dB)
By GB/T12190 standard
Function application

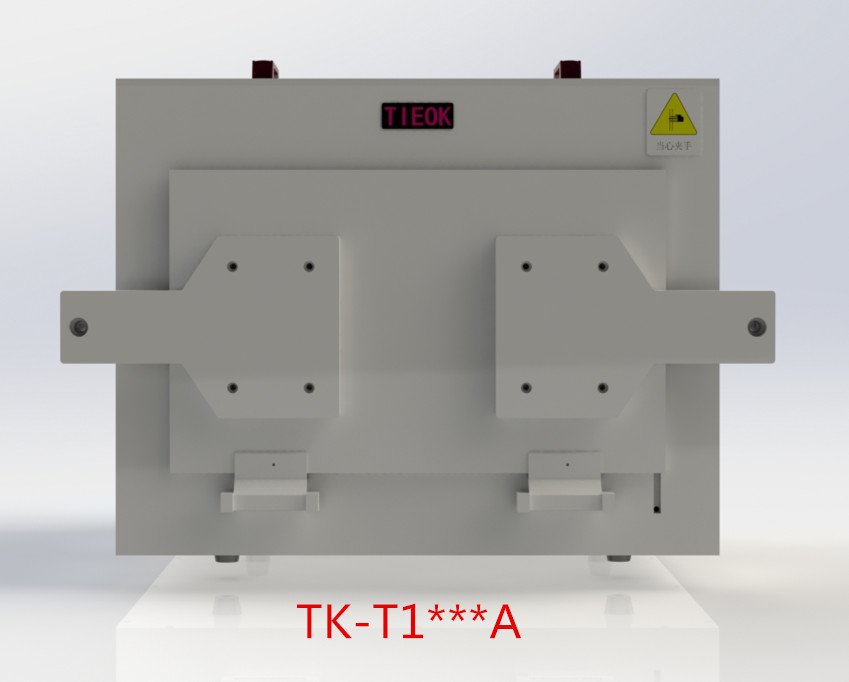

TK-T1332A
260*310*120
mm
320*360*270
mm
Magnetic
field：
10KHz≥40dB
100KHz≥70dB
Plane
wave：
30MHz-1GHz≥80dB
Micro
wave：
1GHz-10GHz≥80dB
Configuring
different I / O interfaces results in different shielding effectiveness of
the shielding box
Available
broadband range :30〜10000 MHz, which can be applied to current and future wireless communication
technologies like GSM, WCDMA, WiMAX, LTE, GNSS, Bluetooth and Wi-Fi. This
series of shielding box can unlimited use multi-band to measure mobile
device, to maintain a stable and effective shielding performance in all
bands, text fixture fixed in the box as a whole, RS232 serial remote control,
is ideal for mobile device measurements.
TK-T
1354 A
270*450*330
mm
330*500*480
mm
TK-T1452A
340*450*180
mm
400*500*330
mm

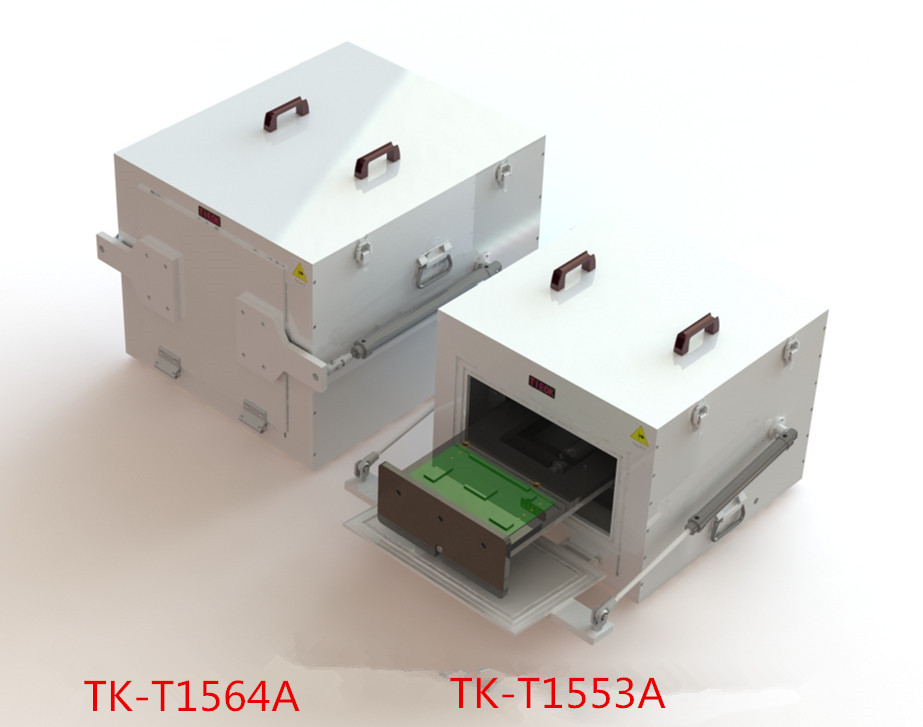

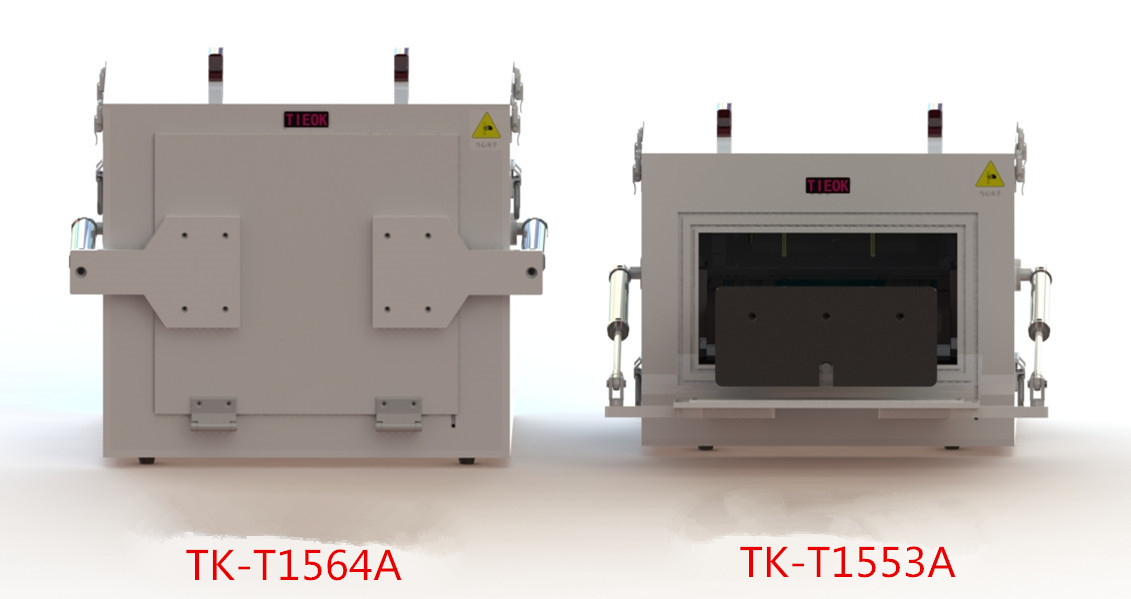

TK-T1553A
440*450*270
mm
500*500*420
mm
TK-T1564A
490*600*350
mm
550*650*500
mm
Alternative
I/O interface type for EMI filter：
1.USB2.0（USB2.0 standard interface, Rate Max.480Mbps Power supply port Max.5A）
2.USB3.0 (Rate Max.3200Mbps，Power supply port Max.3A Isolation≥500MHz)
3.RJ45(Support gigabit Ethernet 802.3AT(POE+)
Max.DC50V 3A
4.DC（DC-AC Max.AC70V DC100V 5A）
5.DB9（Male head→Female head）Rate Max.4.5Mbps DC50V 3A(Power supply ) /200mA(Signal）
6.DB15/VGA(Male head→Female head) Rate Max.4.5Mbps
DC50V 3A(Power supply ) /200mA(Signal) PIN9 Power supply , PIN5,6,7,8,10Ground.(
Three rows interface)
7.DB25(Male head→Female head) Rate Max.4.5Mbps
DC50V 3A(Power supply ) /200mA(Signal)
8.DB37(Male head→Female head) Rate Max.4.5Mbps
DC50V 3A(Power supply ) /200mA(Signal)
9. Other EMI interface like：HDMI 1080P, AC220V 10A, SMA, N, M
CX, BNC, Fakra, Banana bin, waveguide tube, waveguide window, etc.
|
||||||||||||||||||||||||||||
