Model

Dimension

W*D*H

Box dimension

W*D*H

Shielding effectiveness（dB)

By GB/T12190 standard

Function application

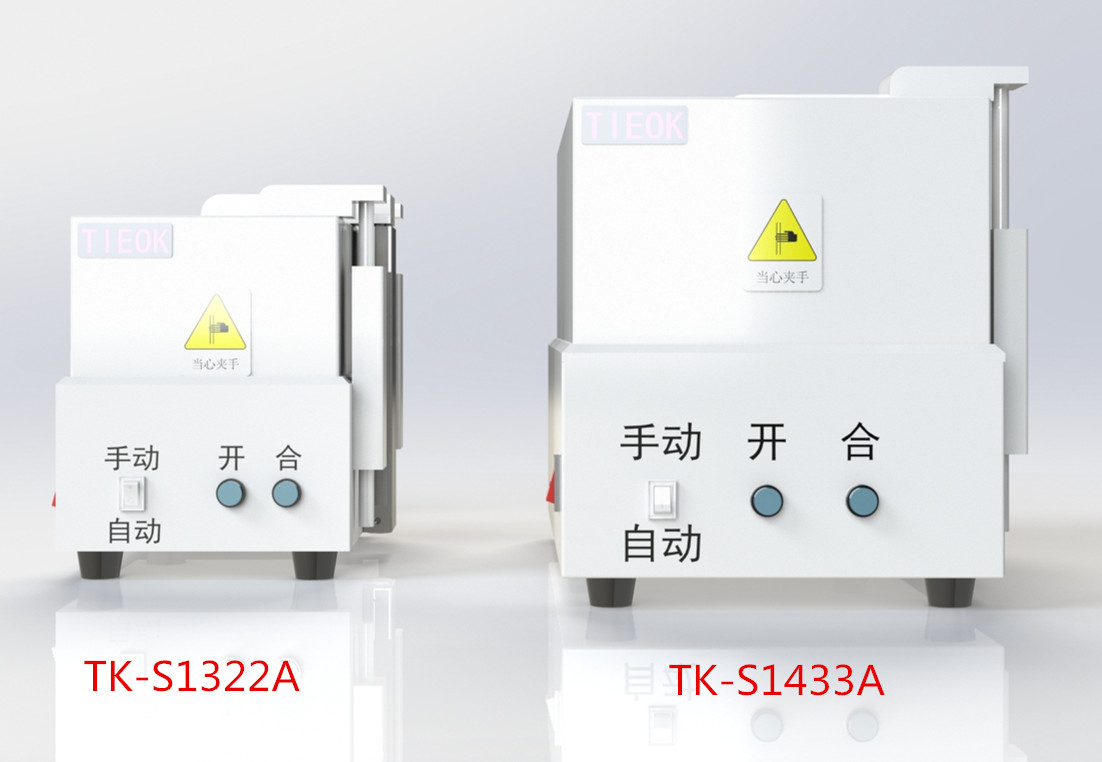

TK-S1322A

280*170*130 mm

350*260*295 mm

Magnetic field：

10KHz≥40dB

100KHz≥70dB

Plane wave：

30MHz-1GHz≥80dB

Micro wave：

1GHz-10GHz≥80dB

Configuring different I / O interfaces results in different shielding effectiveness of the shielding box

Available broadband range :30〜10000 MHz, which can be applied to   current and future wireless communication technologies like GSM, WCDMA, WiMAX, LTE, GNSS, Bluetooth and Wi-Fi. This series of shielding box can unlimited use multi-band to measure mobile device, to maintain a stable and effective shielding performance in all bands, text fixture fixed in the box as a whole, RS232 serial remote control, is ideal for mobile device measurements.

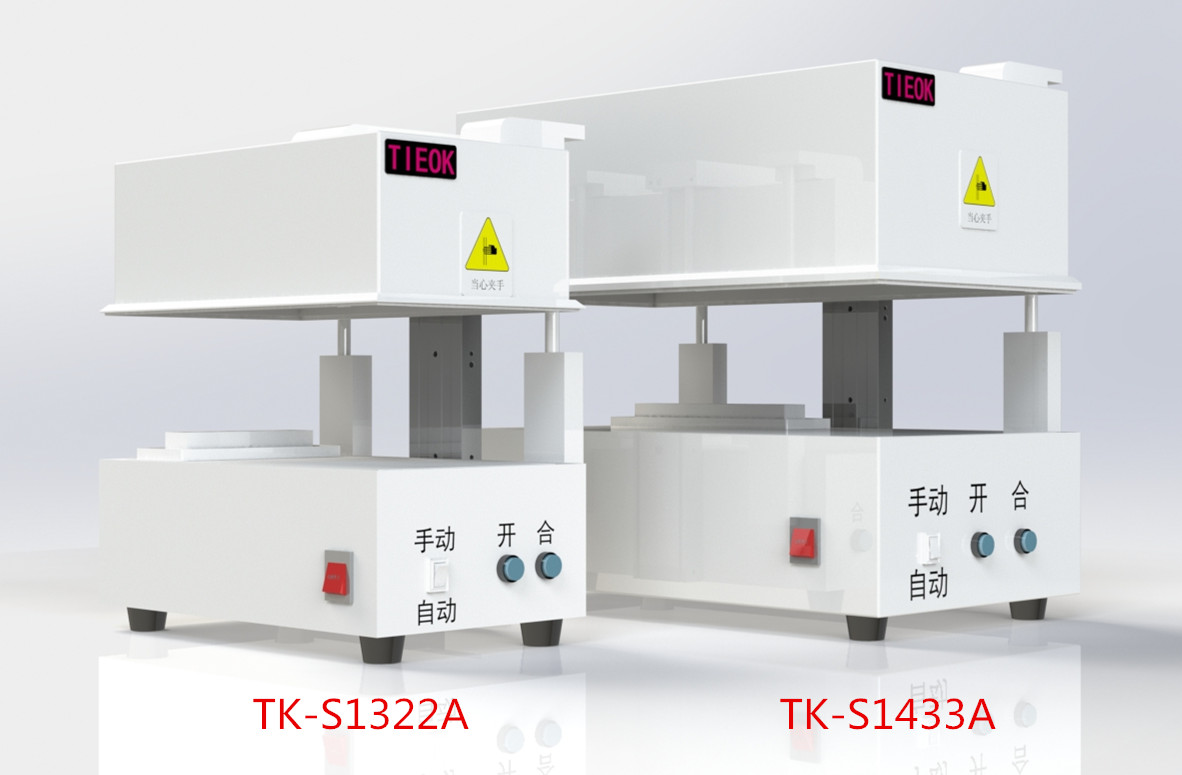

TK-S1433A

400*210*130 mm

460*300*300 mm

Alternative I/O interface type for EMI filter：

1.USB2.0（USB2.0 standard interface, Rate Max.480Mbps Power supply port Max.3A）

2.USB3.0 (Rate Max.3200Mbps，Power supply port Max.3A Isolation≥500MHz)

3.RJ45(Support 10-gigabit Ethernet 802.3AT(POE+) Max.DC100V 800mA  ＜1GHz internal isolation is lower)

4.DC（DC-AC Max.AC70V  DC100V  5A）

5.DB9（Male head→Female head）Rate Max.4.5Mbps DC50V 5A(Power supply ) /200mA(Signal）

6.DB15/VGA(Male head→Female head) Rate Max.4.5Mbps DC50V 5A(Power supply ) /200mA(Signal) PIN9 Power supply , PIN5,6,7,8,10Ground.( Three rows interface)

7.DB25(Male head→Female head) Rate Max.4.5Mbps  DC50V 5A(Power supply ) /200mA(Signal)

8.DB37(Male head→Female head) Rate Max.4.5Mbps  DC50V 5A(Power supply ) /200mA(Signal)

9. Other EMI interface like：HDMI 1080P, AC220V 10A, SMA, N, M CX, BNC, Fakra, Banana bin, waveguide tube, waveguide window, etc.
