Model

Dimension

W*D*H

Box dimension

W*D*H

Shielding effectiveness（dB)

By GB/T12190 standard

Function application

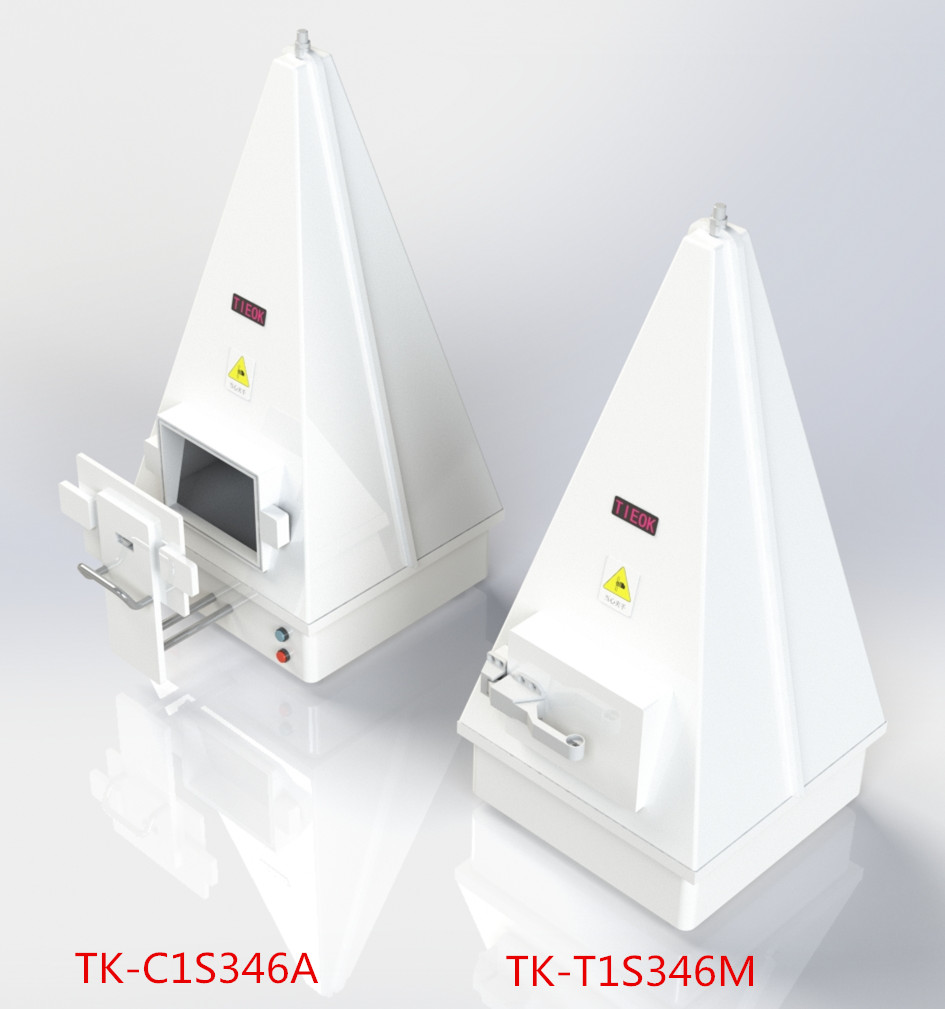

TK-T1S346M

Manual operation

160*160*110 mm

345*405*690 mm

Magnetic field：

10KHz≥40dB

100KHz≥70dB

Plane wave：

30MHz-1GHz≥80dB

Micro wave：

1GHz-6GHz≥80dB

Configuring different I / O interfaces results in different shielding effectiveness of the shielding box

VSWR：100 MHz-6 GHz <1.7, Effective unit height：220mm，Centre field strength：13dBmV/m. Output 1mV, The shield box produces a continuous electromagnetic field that is used to test the electromagnetic fields of small RF devices such as wireless communication receivers, cell phones, etc. When the equipment inside the electromagnetic wavebox is emitting radiation fields, it can also be tested using a test receiver via a port. It’s ideal for mobile devices measurement such as cell phones.

TK-C1S346A

Automatic control

160*150*110 mm

345*405*780mm

Alternative I/O interface type for EMI filter：

1.USB2.0（USB2.0 standard interface, Rate Max.480Mbps Power supply port Max.5A）

2.USB3.0 (Rate Max.3200Mbps，Power supply port Max.3A Isolation≥500MHz)

3.DB9（Male head→Female head）Rate Max.4.5Mbps DC50V 3A(Power supply ) /200mA(Signal）

4.DB15/VGA(Male head→Female head) Rate Max.4.5Mbps DC50V 3A(Power supply ) /200mA(Signal) PIN9Power supply , PIN5,6,7,8,10Ground.( Three rows interface)

5.DB25(Male head→Female head) Rate Max.4.5Mbps  DC50V 3A(Power supply ) /200mA(Signal)

6.DB37(Male head→Female head) Rate Max.4.5Mbps  DC50V 3A(Power supply ) /200mA(Signal)
