Model

Dimension

W*D*H

Box dimension

W*D*H

Shielding effectiveness（dB)

By GB/T12190 standard

Function application

TK-T1132M

170*320*240 mm

190*340*260 mm

Magnetic field ：

10KHz≥40dB

100KHz≥70dB

Plane wave ：

30MHz-1GHz≥80dB

Micro wave ：

1GHz-10GHz≥80dB

Configuring different I / O interfaces results in different shielding effectiveness of the shielding box

Available broadband range :30〜10000 MHz, which can be applied to   current and future wireless communication technologies like GSM, WCDMA, WiMAX, LTE, GNSS, Bluetooth and Wi-Fi.  This series of shielding box can unlimited use multi-band to measure mobile device, to maintain a stable and effective shielding performance in all bands, is ideal for mobile device measurements.

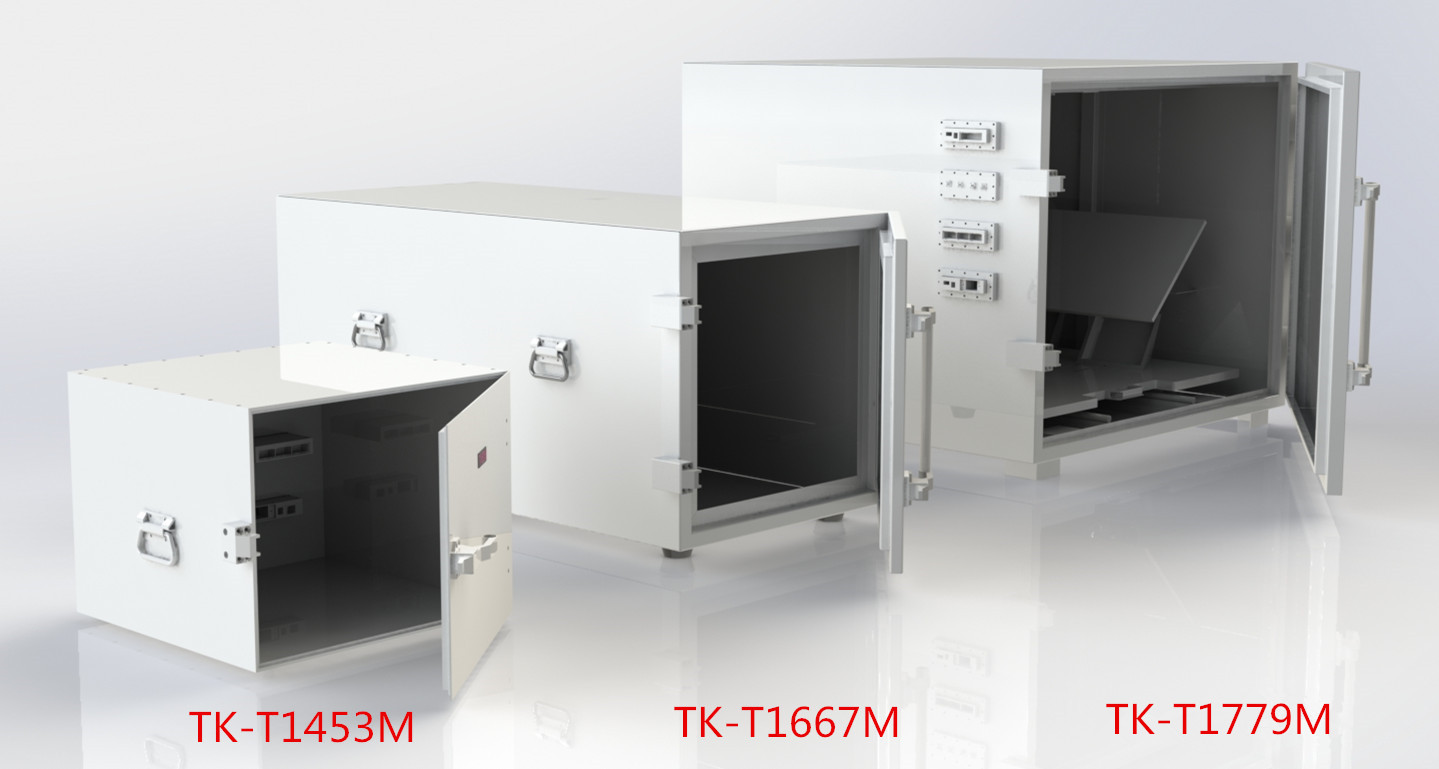

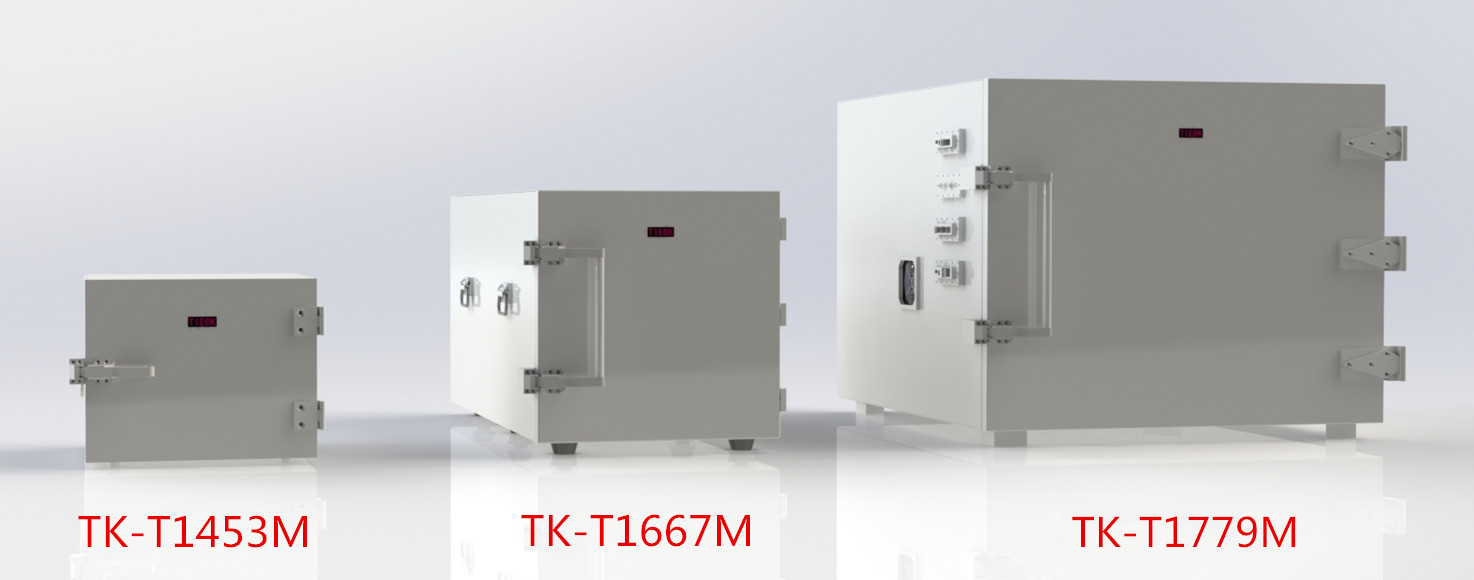

TK-T1453M

410*540*360 mm

430*560*380 mm

TK-T1667M

600*600*700 mm

650*650*750 mm

TK-T1889M

700*700*850 mm

750*750*900 mm

Alternative I/O interface type for EMI filter

1.USB2.0（USB2.0 standard interface, Rate Max.480Mbps Power supply port Max.5A）

2.USB3.0 (Rate Max.3200Mbps，Power supply port Max.3A Isolation≥500MHz)

3.RJ45(Support gigabit Ethernet 802.3AT(POE+) Max.DC50V 3A

4.DC（DC-AC Max.AC70V  DC100V  5A）

5.DB9（Male head→Female head）Rate Max.4.5Mbps DC50V 3A(Power supply) /200mA(Signal）

6.DB15/VGA(Male head→Female head)Rate Max.4.5Mbps DC50V 3A(Power supply) /200mA(Signal) PIN9Power supply, PIN5,6,7,8,10Ground.( Three rows interface)

7.DB25(Male head→Female head) Rate Max.4.5Mbps  DC50V 3A(Power supply) /200mA(Signal)

8.DB37(Male head→Female head) Rate Max.4.5Mbps  DC50V 3A(Power supply) /200mA(Signal)

9. Other EMI interface like：HDMI 1080P, AC220V 10A, SMA, N, M CX, BNC, Fakra, Banana bin, waveguide tube, waveguide window, etc.
