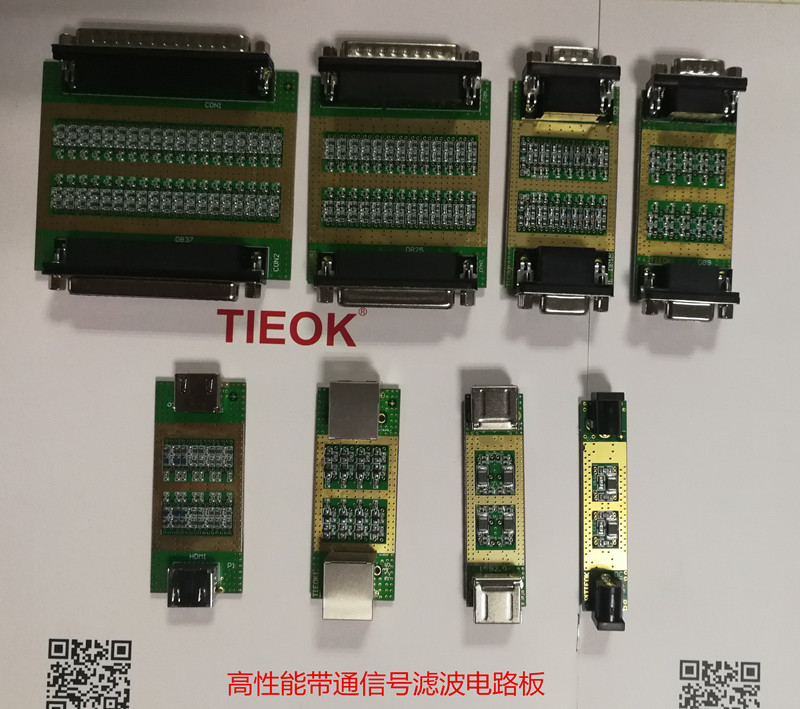

Model

performance evaluation

Shielding effectiveness

USB3.0

Rate Max.3200Mbps,Power supply portMax.3A  Isolation≥500MHz

> 70dB 0.5-2GHz

> 70dB 2-3GHz

> 60dB 3-8GHz

USB2.0

USB2.0 standard interface, Rate Max. 480Mbps Power supply portMax.5A

> 60dB 0.5-2GHz

> 70dB 2-3GHz

> 70dB 3-8GHz

RJ45network port

Support gigabit Ethernet 802.3AT(POE+) Max.DC50V 3A

> 60dB 0.5-2GHz

> 70dB 2-3GHz

> 70dB 3-8GHz

DC-005

DC-AC available Max.AC70V  DC100V 5A

> 70dB 0.5-2GHz

> 80dB 2-3GHz

> 80dB 3-8GHz

DB9

（Male head→Female head）

Rate Max.4.5Mbps  DC50V 3A(Power supply) /200mA(Signal),5pin为Gnd

> 70dB 0.5-2GHz

> 80dB 2-3GHz

> 70dB 3-8GHz

DB15/VGA

(Male head→Female head)

Rate Max.4.5Mbps  DC50V 3A(Power supply) /200mA(Signal). PIN9 Power supply, PIN5,6,7,8,10Ground.( Three rows interface)

> 70dB 0.5-2GHz

> 80dB 2-3GHz

> 70dB 3-8GHz

DB25

(Male head→Female head)

Rate Max.4.5Mbps  DC50V 3A(Power supply) /200mA(Signal)

> 70dB 0.5-2GHz

> 80dB 2-3GHz

> 70dB 3-8GHz

DB37

(Male head→Female head)

Rate Max.4.5Mbps  DC50V 3A(Power supply) /200mA(Signal)

> 70dB 0.5-2GHz

> 80dB 2-3GHz

> 70dB 3-8GHz

Other

HDMI, AC, SMA, MCX, BNC, Fakra, Banana bin, waveguide tube, waveguide window, etc.

Measured values prevail
